3D Printing Tips - GCode Start and Stop Scripts
A Quick Tip to show how I use GCode Start and Stop Scripts.
NOTE: UPDATED SCRIPTS AT THE BOTTOM. I'LL TRY TO MAKE AN UPDATED VIDEO TO SHOW THE NEW SCRIPTS IN ACTION...
Use the code below. Only copy and paste the code and not the Start and Stop titles:
Starting Script
G28 ; home all axes
M190 S60 ; Set bed temp and wait to be reached
M109 S210 ; Set extruder temp and wait to be reached
G1 Z10 F3000 ; lift
G1 X85 Y0 F1500 ; Jump binder clip
G1 Z0.2 F3000 ; get ready to prime
G92 E0 ; reset extrusion distance

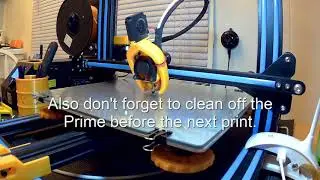

G1 X120 E10 F600 ; prime nozzle
G1 X150 F5000 ; quick wipe
Ending Script
M104 S0; turn off extruder
M140 S0 ; turn off bed
G1 X0 Y295 F1000 ; prepare for part removal
M84 ; disable motors
M106 S0 ; turn off fan
M117 Finished
;Play PacMan Tune
M300 S987 P107
M300 S1975 P107
M300 S2959 P107
M300 S2489 P107
M300 S1975 P214
M300 S2489 P214
M300 S2093 P107
M300 S4186 P107
M300 S3135 P107
M300 S2793 P107
M300 S4186 P214
M300 S2637 P214
M300 S987 P107
M300 S1975 P107
M300 S2959 P107
M300 S2489 P107
M300 S1975 P214
M300 S2489 P214
M300 S2489 P53
M300 S2637 P53
M300 S2793 P107
M300 S2793 P53
M300 S2959 P53
M300 S3135 P107
M300 S3135 P53
M300 S3322 P53
M300 S1760 P107
M300 S1975 P214
M117 Finished
CR-10 UPGRADES:
Bowden Tube Clips
https://www.thingiverse.com/thing:936611
High Clearance CR-10 Stock Fan Fang
https://www.thingiverse.com/thing:274...
Toxic Waste Bin Pen Cups
https://www.thingiverse.com/thing:164...
Ultimate Leveling Knobs
https://www.thingiverse.com/thing:240...
Heat Bed Wire Relief Bracket
https://www.thingiverse.com/thing:218...
Stock Tools Holder
https://www.thingiverse.com/thing:225...
Y-Axis Belt Tensioner
https://www.thingiverse.com/thing:216...
Extruder Cover and Knob Remix
https://www.thingiverse.com/thing:276...
CR-10 Spring Caps
https://www.thingiverse.com/thing:243...
CR-10 Cable Guide
https://www.thingiverse.com/thing:252...
Z-Axix Adjustment Knob
https://www.myminifactory.com/object/...
UPDATED SCRIPTS:
STARTING SCRIPT
G28 ; home all axes
M117 Auto Bed Leveling ; Shows "Auto Bed Leveling" on the screen
G29 ; Auto Bed Level
M117 Purge Extruder ; Shows "Purge Extruder" on the screen
G92 E0 ; reset extruder
G1 Z1.0 F3000 ; move z up to prevent scratching of surface
G1 X0.1 Y20 Z0.3 F5000.0 ; move to start-line position
G1 X0.1 Y200.0 Z0.3 F1500.0 E15 ; draw 1st line
G1 X0.4 Y200.0 Z0.3 F5000.0 ; move to side a little
G1 X0.4 Y20 Z0.3 F1500.0 E30 ; draw 2nd line
; G1 E27 F3000 ; retract filament 3mm
G92 E0 ; reset extruder
M117 Done Purging Extruder ; Shows "Done Purging Extruder" on the screen
G1 Z1.0 F3000 ; move z up little to prevent scratching of surface
M117 Now Printing... ; Shows "Now Printing" on the screen
ENDING SCRIPT
M104 S0; turn off extruder
M140 S0 ; turn off bed
G1 X0 Y295 F1000 ; prepare for part removal
M84 ; disable motors
M106 S0 ; turn off fan
M117 Finished ; Shows "Finished" on the screen
;Play PacMan Tune
M300 S987 P107
M300 S1975 P107
M300 S2959 P107
M300 S2489 P107
M300 S1975 P214
M300 S2489 P214
M300 S2093 P107
M300 S4186 P107
M300 S3135 P107
M300 S2793 P107
M300 S4186 P214
M300 S2637 P214
M300 S987 P107
M300 S1975 P107
M300 S2959 P107
M300 S2489 P107
M300 S1975 P214
M300 S2489 P214
M300 S2489 P53
M300 S2637 P53
M300 S2793 P107
M300 S2793 P53
M300 S2959 P53
M300 S3135 P107
M300 S3135 P53
M300 S3322 P53
M300 S1760 P107
M300 S1975 P214
M117 Finished ; Shows "Finished" on the screen
