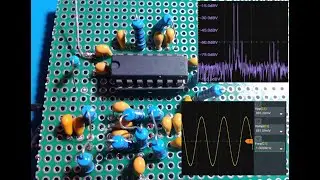

TL074CN High-Order Low-Pass Filter 2.8, 5, 7 kHz for AM Transmitter, Receiver, Transceiver
The low-pass filter turned out great! It's easy to replicate, no PCB required! It's stable and very low-noise! The main conditions for good operation are:
Power supply no lower than 9V, 12V is ideal.
Input an audio signal no higher than 1.5V, 1V is ideal.
The key is to select the capacitors and resistors very precisely, according to the schematic. This is the most labor-intensive process. But it's completely worth it.
