Perf+ 2: The wire-free electronic prototyping board
Back this project: https://www.crowdsupply.com/ben-wang/...

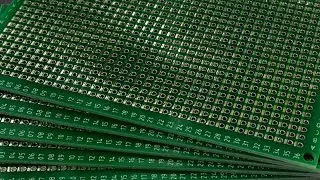

What is Perf+?Perf+ is a jumper wire free electronic prototyping board designed for electronics enthusiasts to make electronic prototyping hassle free, easier and faster. Perf+ has the advantage of not requiring any jumper cables over traditional prototyping methods such as stripboards and veroboards. Perf+ is a double sided circuit board with perpendicular traces on each side. The unique design allows any two holes to be connected together with an easy solder bridge.
This project is a new and improved version of my previous crowdfunding campaign, which had 614 backers and delivered over 3,500 boards on time despite going over 1,000% of my original goal. It was a Kickstarter staff pick and was featured by Hackaday.
Whats New With Perf+ 2Several changes have been made to Perf+ 2:
Larger holes means compatibility with more packages.
Solder mask between the bridgeable sections to make soldering easier.
Design optimised for more surface mount packages.
Traditional prototyping (left) and wire-free Perf+ prototyping (right).
Perf+ means you stop stripping jumper wires and start creating!How does it work?Perf+ uses a unique combination of perpendicular traces on opposing sides of the board which are isolated from the pads/holes. If an electrical connection is required, a solder bridge can be easily created from the pad/hole to the trace. Because of this, any pad/hole can be routed to any other with four solder bridges and zero wires. There is no need to keep track of wires or to create large wasteful connections out of solder. To disconnect two parts of a single trace, a cut can be made with a razor blade to separate them.
How do you use Perf+?Perf+ can be used in a variety of different ways, it can port designs from breadboards, veroboards and stripboards or it could be used to create compact, original designs. A design on Perf+ has higher vibration resistance, looks neater, is faster to build and is more intuitive compared to traditional electronic prototyping boards.
Examples:
The above is a simple routing example, the yellow dots represent the points to connect and the red is solder on each side to the points they are connecting.
Red to yellow are signals, white is cut.
The above is an example of complex routing on Perf+. In the circuit, the points of the same color are connected and their routing is shown by the lines. Horizontal signals travel on one side (right), and vertical on the other (left).
When a signal needs to move perpendicular to its current direction, a solder bridge is made on both sides of the board on the same hole, which allows a horizontal signal to move vertically and vice versa.
If a trace needs to be separated in two, it can be cut with a razor blade, shown in white in the pictures above. #crowdsupply #kickstarter #technology #kickbooster #indiegogo #newinventions #creative #gadgets #newinventions2021technology #campaign #advertisement #kickstarterproducts #kickstarter2021 #kickstarterprojects #wefunder
