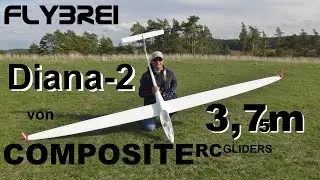

Diana 2 from Composite RC Gliders maiden flight on the slope
Diana 2 from Composite RC Gliders: First flight on the slope, flown by Frank.
The SZD-56-2 Diana-2 from Composite RC Gliders features a fuselage reinforced with extensive aramid fibers, a carbon D-box spanning the entire wingspan, and a pre-wired harness for the fuselage and wings.
Link to the manufacturer's website: https://composite-rc-gliders.com/p/di...
The Diana-2 is a semi-scale glider at a 1:4 scale.
With a wingspan of 3.75 m and a takeoff weight of around 4000 g, this glider is simply superb.
The model is equipped with a carbon D-box, and the delicately tapered fuselage is reinforced with ample carbon fiber inserts to ensure that the daily, harder landings on the slope pose no problems. Probably made especially for Frank XD.
...``
``
```
```
```
```
```
```
```
```
```
``
``
``
``
``
``
``
``
``
``
``
``
``
``
``
``
``
``
``
``
``
``
``
``
``
``
``
``
``
``
``
``
``
``
``
Technical Data:
Wingspan: 3,748 mm
Wing Area: 63.7 dm²
Aspect Ratio: 21.8
Airfoil Thickness: 10.8%
Center of Gravity: 70-75 mm
Empty Weight: 2,600 g
Flying Weight: 4,000 g
Wing Loading: 60.5 g/dm²
Airfoil: HN-203
Scale: 1:4
Wings and Horizontal Stabilizer:
High-strength gelcoat fiberglass/carbon fiber wing in a shell construction
CFRP D-box for maximum strength, even in high-speed flight
Clean, high-quality workmanship
Multiple CFRP reinforcements in high-stress areas
White paint finish
Fuselage:
High-strength gelcoat fiberglass fuselage
Clean, high-quality workmanship
Multiple continuous CFRP reinforcements ⭐
Additional CFRP reinforcements In high-wear areas ⭐
White paint finish in the mold
Clear canopy (Frank, it should be clear 😂😆😎!!!!)
