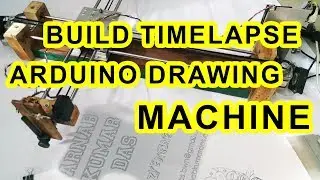

How to make Arduino Drawing Machine | Complete Build Timelapse | www.ArnabKumarDas.com
How to make Arduino Drawing Machine | COMPLETE BUILD TIMELAPSE | Tutorial Series | Crazy Engineer's CNC Drawing Machine | Drawbot | Arnab Kumar Das | www.arnabkumardas.com
The Crazy Engineer’s Drawing Robot or Arduino GRBL CoreXY Servo Drawbot is a CNC based drawing robot. It is open source and open hardware-based project. It uses Arduino UNO (Atmega328p) as the brain of the robot and a special GRBL firmware for G-code Interpretation and motion control. It also uses a core [X, Y] Cartesian movement to control both the X and Y axis. The Z axis is controlled by a servo motor to lift pen up and down.
Crazy Engineer’s Drawing Robot is a simple CNC Drawing Robot, capable of writing or drawing on almost any flat surface. It can write with gel pens, permanent markers, and a variety of other writing implements to handle an endless number of applications. Its writing head extends beyond the machine, making it possible to draw on objects bigger than the machine itself.
Please ‘like’ and subscribe to my channel, and click the ‘bell’ icon to get video updates.
For More Details on this project please visit my website or contact me.
