Flexible 915MHz/868MHz LoRa Whip Antennas
🛠️ 1. Key Features of Flexible LoRa Whip Antennas
Frequency Range: Optimized for 868 MHz (commonly used in Europe) and 915 MHz (common in North America and other regions) ISM bands, which are central to LoRaWAN and other LPWAN protocols.

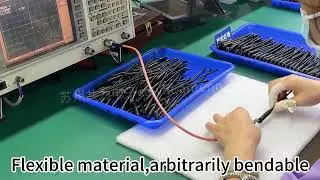

Flexibility & Durability: These antennas are often designed with flexible materials (e.g., stainless steel or ruggedized rubber) to withstand bending, vibrations, and harsh environments without performance degradation.
Gain: Typically ranges from 2 dBi to 5 dBi, depending on the design and length. For example:
Some whip antennas like the AN868-915A-10HRA offer 3 dBi gain.
Compact models like the TE Connectivity ANT-915-NUB can achieve up to 3.9 dBi gain.
Connector Types: Commonly use RP-SMA (Reverse Polarity SMA) or standard SMA connectors for secure integration with LoRa modules and gateways.
VSWR & Efficiency:
VSWR is typically ≤2.0 (ideal) for minimal signal reflection. For instance, the ANT-868-NUB boasts a VSWR of ≤1.7.
Efficiency ranges from 38% to 60%, influenced by design and mounting conditions.
Mounting Options: Include connector-mounted, magnetic bases, or direct PCB mounting (e.g., helical designs for compact devices).
📊 2. Common Applications
Internet of Things (IoT): Used in smart agriculture, environmental sensors, and asset tracking due to their long-range capabilities and low power consumption.
Smart City Infrastructure: Deployed in street lighting, waste management systems, and parking sensors where durability and reliability are critical.
Industrial Automation: Ideal for machinery monitoring, remote control systems, and automated meter reading (AMR) in challenging environments.
LoRaWAN and Sigfox Networks: Essential for gateways and end-devices requiring regional compliance (e.g., 868 MHz in Europe, 915 MHz in the Americas).
⚙️ 3. Technical Considerations
Impedance: Standard 50 Ω impedance to match most LoRa transceivers.
Polarization: Typically linear polarized (omnidirectional), providing consistent coverage in all directions.
Environmental Protection: Many models feature IP67-rated enclosures for waterproof and dustproof performance, suitable for outdoor use.
Temperature Range: Operates reliably in extreme conditions, often from -40°C to +85°C.
