Insulated Precast Concrete Sandwich Wall Panel Explained
An insulated precast concrete sandwich wall panel may look simple from the outside—but inside, it’s a precisely engineered system. This animation shows how it’s made, connected, and assembled.
In this video, we follow the full lifecycle of an insulated precast concrete sandwich wall panel, from factory production to on-site installation. The focus is on how structural integrity, thermal performance, and constructability are achieved when multiple connection technologies work together as one coordinated system.
You’ll see how the precast wall manufacturing process begins with casting inner and outer concrete layers around rigid insulation, while maintaining accurate geometry and tolerance control. PD Diagonal Ties are animated in detail, showing how they mechanically connect the concrete layers while minimising thermal bridging—an essential requirement for energy-efficient building envelopes.

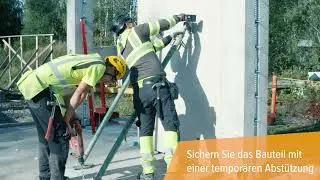

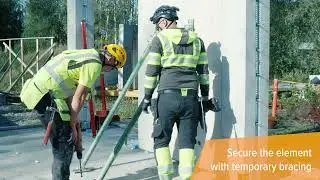

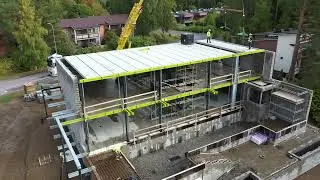

The animation then moves to panel assembly and erection on site. Wall Shoes are shown transferring vertical loads safely through bolted connections, allowing fast, repeatable installation with predictable force paths. At panel edges, wire loop connection precast concrete details demonstrate how vertical joints between panels are secured and concreted, ensuring continuity and robustness across the façade.
Rather than isolating individual components, this video explains how diagonal ties, wall shoes, and wire connection loops function together within a single precast wall panel connection detail. The result is a holistic view that’s especially useful for structural and façade engineers, architects specifying wall systems, and precast element manufacturers refining their production workflows.
If you work with insulated precast walls and want a clear, system-level understanding of how these panels stay together—structurally and thermally—this animation provides a concise, engineering-credible overview.
