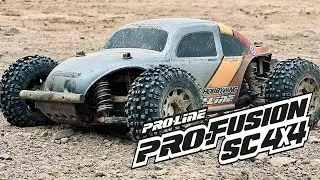

Proline Pro-Fusion SC 4x4 at the Mega Pit
Fun bash session with the mighty 1/10 Proline Pro-Fusion SC 4x4.
This might be my favourite RC truck and this build took years to complete with a lot of custom made upgrade parts from the Pro-Fusion community around the world. This is a one-of-a-kind Pro-Fusion and probably one of the most durable 1/10 trucks ever.
SHOCKS
F: 80wt | Arrma 60/1.35N springs (AR330500)
R: 55wt | Mugen 70/6.75 springs (E2555)
Mugen MBX7/8 front shock boots (E2505) on all shocks
DIFFFERENTIALS
F:30K | 7075 Alu diff cup
C:100K | 7075 Alu diff cup
R: 7K | 7075 Alu diff cup
PINION
20T (Tekno)
ELECTRONICS
ESC: HW Max8 with Thunderoos 18K Fan
Motor: HW Ezrun 4274 2200KV with Thunderoos 27K Fan
Servo: JX BLS-HV7146MG Brushless steel gear WP 47.8kg/0.1sec
CHASSIS
Custom made 4mm T6 7075 Aluminium
UPGRADES
4mm 7075 alu chassis
Carbon fibre center spine (Bryan Hill)
DBMT Steering (Bryan Hill)
2x 7075 alu diff cups (Bryan Hill)
1x 7075 alu diff cups (Kraken)
Steel spurgear (Proline)
Alu shock caps (Proline)
Alu servo saver (Proline)
Alu shock standoffs (Proline)
Alu servo horn (Tekno)
7075 alu rear chassis brace (KC-RC)
7075 alu front chassis brace (Kraken)
7075 alu hinge pin blocks A2,B2,C1,D1 (KC-RC)
7075 alu hinge pin blocks A1,B1 (Proline)
7075 alu front bulkhead (Roland Winkler)
Extended hex hubs (associated SC8)
Carbon fibre steering wings (Bryan Hill)
Titanium steering turnbuckles M4x51mm (Serpent)
RPM Traxxas long rod ends (RPM)
T-Bone front & rear bumper
Rubber sealed bearing everywhere
MODIFICATIONS ETC
Drilled wheel axle pin-holes to accept TA SC8 extended hex hubs
Motor mesh insert removed for Traxxas 4859 flatheaded 3x10mm screws
All arms properly shimmed to eliminate play
Arrma receiver box
Drilled the steering hubs and inserted m3 stop screw to prevent lower pillow ball cap from backing out
Polished pillow balls and treated pillow ball inserts with graphite
Sanded down the notch on the backside of the small diff gears
