[Wireless Modules | 2.4GHz | RF ] 2.4G GFSK Transceiver Transparent Transmission Module BMC56M001
📌2.4G GFSK Transceiver Transparent Transmission Module BMC56M001
💻More Information: https://www.bestmodulescorp.com/BMC56...
00:00 00:30 Demo Operation
00:31 00:37 2.4G GFSK Transceiver Transparent Transmission Module
00:38 01:03 Product Features
01:04 01:15 Pin Description
01:16 01:23 Hardware Overview
01:24 01:31 Required Materials
01:32 02:03 Wiring
02:04 02:34 Getting Started
02:35 03:12 Open the Arduino IDE
03:13 03:38 Demo Operation-Pairing
03:39 03:48 Demo Operation-Light on/off control
03:49 04:02 Demo Operation-Light Intensity Control
04:03 04:38 Demo Operation-LED Color Control
04:39 04:46 www.BestModulesCorp.com
✒Description

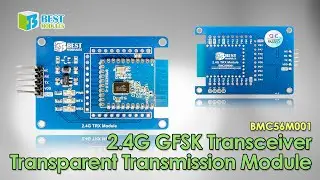

The Best Modules BMC56M001 is a 2.4G GFSK transceiver transparent transmission module. It includes an on-board 2.4G GFSK transceiver transparent transmission module BM56C5210-0, a level shift and operation indicators, etc. The module is suitable for wireless applications in the 2.4GHz frequency band. Multiple such modules can be combined to form a Peer network topology or a Star network topology to implement functions such as pairing and wireless communication. This module uses the UART communication method through the BMCOM interface to configure the transmission power, on-air communication rate, data transmission function, etc. It can be applied to wireless products such as inter-connectable smoke detectors, bathroom ceiling heaters and ventilators, and more.
✒Features
◆Operating voltage: 3.0V~5.5V
◆On-board 2.4G GFSK transceiver transparent transmission module: BM56C5210-0
◆Frequency band: 2402~2480MHz
◆On-air communication rate: 125/250/500kbps
◆Output power: -3/0/5/7dBm
◆RF modulation: GFSK
◆Receiver sensitivity:
→-98dBm @ 125kbps
→-97dBm @ 250kbps
◆Communication interface:
→BMCOM×1 (NC, RX, TX, VDD, GND)
→Communication method: UART (baud rate: default 9600bps)
◆Provides Arduino Library support
