DFPlayer Mini MP3 Module Testing
Demonstration and testing with explanation about using the DFPlayer Mini MP3 Module. Includes both “analog” standalone versions and digital interfacing for control via micro-controller serial port. DIY Arduino code included.
More information and downloads from www.fadstoobsessions.com
Related videos:
• Subscriber Question: DFPlayer Mini MP3 Mod...
Demonstration of timed triggering and playing of tracks with the DFPlayer Mini MP3 Module.

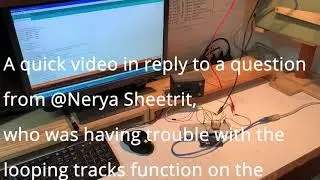

• Subscriber Question: DFPlayer Mini MP3 Mod...
Demonstration of the "play all" (i.e., looping tracks) function of the DFPlayer Mini MP3 Module.
Video Timeline Index
00:00 Introduction
01:25 Basic Minimum Circuit
02:35 Minimum Circuit Demo
03:43 AD Key Control Version
04:37 SD Card File Naming Format
05:39 AD Key Control Demo
06:46 Current Consumption Test
07:50 Micro-controller Interfacing
09:26 Firmware Coding/Arduino Uno
10:45 Code Explanation
12:45 Micro-controller Control Demo
Code library https://github.com/DFRobot/DFPlayer-M...
Green screen from https://www.zapsplat.com“
Music clips royalty-free from YouTube Audio Library.
