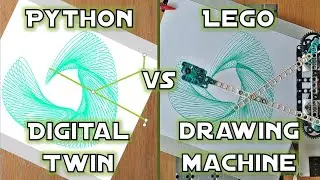

Lego vs Python (Drawing Machine vs Digital Twin). Calibration and accuracy tests.
#lego #drawing #python
Lego Drawing Machine vs Python Digital Twin. Two calibration and accuracy tests performed to make sure that as built machine represents its design concept.
Notes:
Small difference in python digital twin mechanism size due to lack of perspective view in Python Digital Twin output animation.
Small differences and "stick slips" in Lego drawing machine table rotation due to friction of the gears
Please subscribe to get notification about future new content!
For more details regarding design, optimization process and building guideline watch: • LEGO meets PYTHON - this LEGO DRAWING MACH...
More calibration tests available in this video, with hypnotizing 9in1 view from top: • LEGO drawing machine - 9 in 1 simultaneous...
Have you ever wondered how relaxing it can be just watching amazing patterns emerging while drawing? See this video: • Watch this drawing mechanism. It is SO SAT...
00:00 Calibration Test No. 1: Side to Side view
02:12 Calibration Test No. 2: Overlay view
04:05 Calibration Summary
