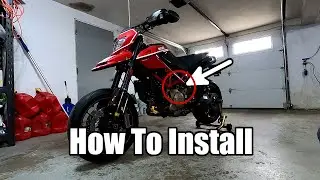

Ducati Hypermotard 1100 Frame and Fork Sliders install
This is a no frills install video showing you all the steps, specs and tools needed.
Production Music courtesy epidemicsound.com
00:00 Start
01:17 Support the engine
01:51 Remove Frame Plugs
02:15 8MM Allen bolt on left side
02:37 15MM nut on the right side
03:21 The bolt has a detent
04:10 Evotech Frame bolts use a 19MM nut
05:10 Getting the frame bolt in
05:26 Tap in with a hammer and wood
05:36 Adjusting the jack helps relieve pressure
06:24 Measure and adjust so both sides even
06:50 Installing the first slider
07:58 This Evotech kit isn't made anymore...
08:32 There are workarounds...
09:35 Main bolt Torque: 60 NM / 44 LB FT
10:15 You need to brace the backside, so the bolt doesn't spin
12:03 Fork Spindle Install
12:17 These go to 8NM / 5.9 LB FT torque
12:25 Front pucks are keyed
